How to draw in two-point perspective

In this tutorial, you lot will learn how to draw objects in the 2-point perspective (also diagonal perspective). This allows us to describe things in an oblique view in perspective.

In a previous tutorial, nosotros got to know the ane-point perspective. This technique of the perspective representation had the limitation that it could represent objects simply frontally from the front end perspective. However, the 2-point perspective - also ofttimes referred to as a perspective with two vanishing points - represents objects that are positioned obliquely to the observer. You tin acquire how to draw in two-point perspective in the following exercise.

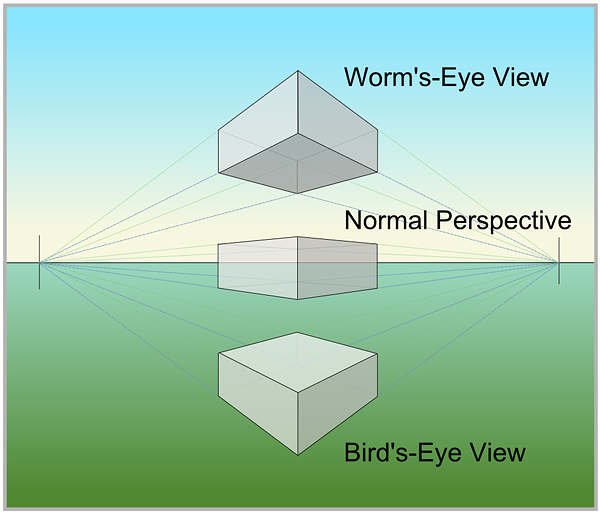

In the following moving picture you meet several cuboids in the two-indicate perspective*, with the worm's-middle view, the normal perspective and the bird's-eye view being shown.

Objects in the 2-bespeak perspective

Exercise: Draw a cuboid in the 2-point perspective

In the following exercise we volition try to draw a elementary cuboid in the ii-indicate perspective. The cuboid is one of the simplest motifs for this technique.
The procedure will be explained step by pace so that beginners of the perspective drawing can hands understand the whole procedure.

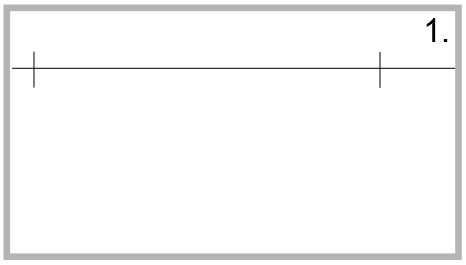

Step 1 - Basic elements of the two-point perspective

In the two-point perspective you need two vanishing points. Therefore, describe the horizon outset and mark two vanishing points - left and right.

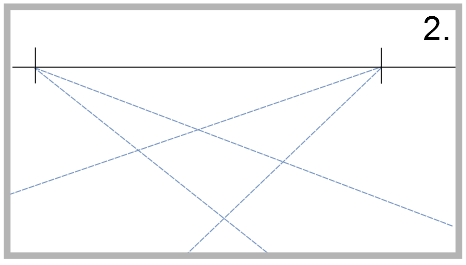

Pace 2 - Vanishing Lines

Starting from the 2 vanishing points, two vanishing lines are divers, each defining the underside of the cuboid.

Step 3 - Depict the lower surface

The lesser of the cuboid tin now be drawn using the vanishing lines.

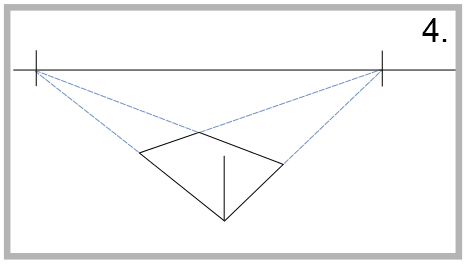

Step iv - Set the height of the cuboid

Next, the foremost edge of the cuboid follows. This edge defines the height of the cuboid.

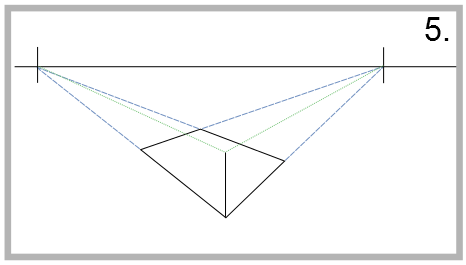

Step 5 - Set up summit surface

At present draw 2 lines from the left and correct vanishing point to the top of the border. This is used to prepare the geometry of the upper surface of the cuboid.

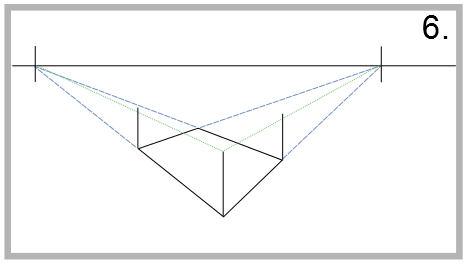

Step 6 - Draw side edges

With the help of these vanishing lines, the 2 lateral edges can now be raised vertically. The edges end at the two new vanishing lines. In the two-point perspective, these two lines are automatically shorter than the front edge, as the condition of the perspective mode of presentation requires.

Step 7 - Vanishing lines of the rear upper edges

To the points at which these two lateral edges intersect the upper lines, two further lines tin be drawn. These vanishing lines marking the two rear upper edges of the cuboid.

Drawing in one-point perspective

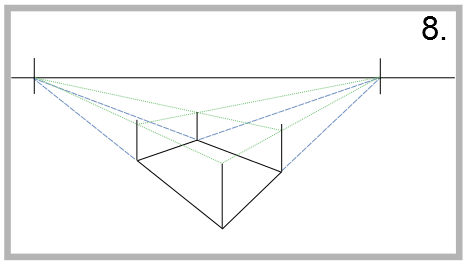

Step 8 - Draw the rear vertical edge

The two new escape lines define the peak of the rear vertical edge of the cuboid.

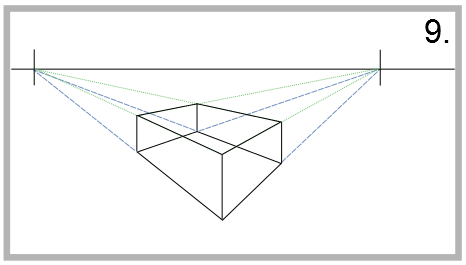

Step ix - Define the upper surface

The grade of the surface of the cuboid is also defined with the preceding step. Now you tin trace these lines clearly with the pencil.

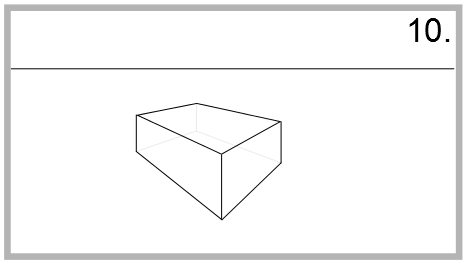

Footstep ten - Remove the guide lines

Now yous can erase all the auxiliary lines and the subconscious edges. Thus, the perspective drawing of the cuboid is completed in the two-signal perspective.

Subsequently this last footstep, the drawing is finished. This exercise is, of class, a very simple example of the two-point perspective. However, you should accept learned how the perspective works with ii vanishing points and now be able to implement your own uncomplicated perspective drawings with this method.
